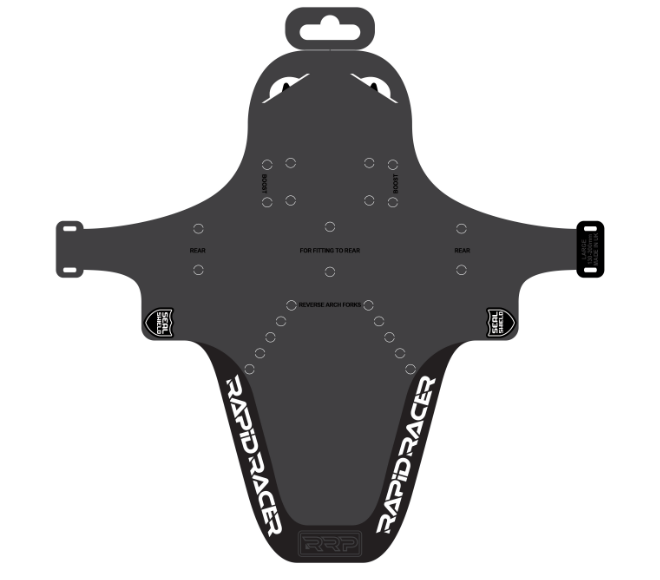

EnduroGuard v4.2
Our new ENDUROGUARD v4 mudguard is an improved design which is much better at coping with the bigger wheel sizes, we believe our mudguard is the best designed offering by far the best protection of its type for your eyes and fork seals. We have also added new graphics and colourways to our range.
The ENDUROGUARD is compatible with all wheel sizes and all tyres up to 3”
Front
- Standard:
For forks from 80mm to 125mm travel
31g with uncut cable ties
Length: 241mm
- Large:
For forks from 130mm to 200mm travel
35g with uncut cable ties
Length: 272mm
Colours available
- UK distributor:
- EXTRA UK
SEAL GUARD
Our unique Seal Guard bulge has been refined to offer additional protection for your seals against the relentless attack from spray and mud without affecting the fit or aesthetics, you will be grateful for this feature on those extremely wet rides prolonging the life of your fork seals. The Seal Guard has received multiple acclaims for its essential function and is unique to RRP
USAGE
The ENDUROGUARD is designed as a FRONT or REAR mudguard and has been specifically adapted to do both jobs extremely well
ADDITIONAL FEATURES
The ENDUROGUARD v4 is fully BOOST compatible and now also includes snap-off holes for reverse arch forks like DVO / Manitou
You have a choice of snap-off holes for the front fork brace, narrow holes for normal forks and if needed wider holes for BOOST forks
The v4 also comes with a turn-down spray flap, fold this down 90 degrees for even more protection from mud and spray, this can be almost touching the tyre as it will move out of the way if thick mud hits it
FRONT MUDGUARD
The 'T' shape clamping points on the arms are designed to wrap around the fork leg providing a better and neater fit. The front of the mudguard is designed to offer increased protection for higher speeds without spoiling the look of the mudguard. The wider curve with flat rear end offers maximum protection and frame clearance compared to a simple symmetrical curve
SIZING
- FRONT SUSPENSION:
- 80mm - 125mm - STANDARD
- FRONT SUSPENSION:
- 130mm - 200mm - LARGE
REAR MUDGUARD
The holes for the fork brace aren't ideally located when using it as a rear mudguard, so we built in two snap-off holes to allow you to rotate the guard forward and attach it to the brace between the rear stays, this feature creates more mud / tyre clearance and a much better fit.
Choose either the STANDARD or LARGE size depending on what rear protection you want to achieve (STANDARD would be the default size recommendation)
NB: if you have no rear brace between the rear stays then use the extra snap-off holes on the arms to create two points of attachment each side
MATERIAL
We took a more expensive route opting for a custom thickness of polypropylene to meet our requirements, we felt the standard "off the shelf" options used by others were either too thick (1.2mic) or too thin (0.8mic), our custom material sits squarely in-between. This allows us to offer the best of both worlds, the durability and quality feel that a thicker material gives, combined with the fit flexibility that a thinner material delivers
Our EnduroGuard is designed, manufactured, and packed in the United Kingdom
Fitting the EnduroGuard
Front mudguard
- Remove cable ties and insert them into all the holes as shown below
- Bend and slide the ENDUROGUARD into position from the front
- Loosely fasten up the top cable ties around the fork brace first then the legs4) Centralise and then tighten up the top cable ties real tight so it won't move
- Rotate/twist the bottom arms around the legs to raise the back of the guard (ensure the guard doesn't hit the frame when bottoming the fork)
- Tighten all cable ties and cut off any excess and move them to cover the holes
- Finally push up the arms to shove the guard up towards the fork brace
Rear mudguard
Remove the snap-off holes either side of the RRP logo if you have a rear brace
Loosely attach the cable ties to the rear seatstays and rear brace
Align the ENDUROGUARD and do up all the cable ties real tight with fat pliers (remember cable ties don’t scratch forks, loose cable ties do!)
Important
Zip ties must be very tight to prevent movement. MIN CLEARANCE - 10mm from tyre (front) & 15mm from frame on bottoming (rear) USE CLEAR PROTECTIVE TAPE on all areas that the guard contacts the fork to reduce any rub marks or scratches INSPECT BEFORE YOU RIDE: DO NOT USE IF DAMAGED IN ANY WAY AS CONTINUED USE MAY LEAD TO FAILURE OR INJURY DO NOT USE IN STICKY MUD AS IT MAY CAUSE A BLOCKAGE. DO NOT CLEAN WITH NAIL VARNISH REMOVER OR DISC BRAKE CLEANER RapidRacerProducts Ltd accepts no liability for any damage / injury caused due to improper fitting / use of our products RapidRacerProducts Ltd, Parkfields Business Centre, Park Street, Stafford, ST17 4AL, United Kingdom
