Instructions for use

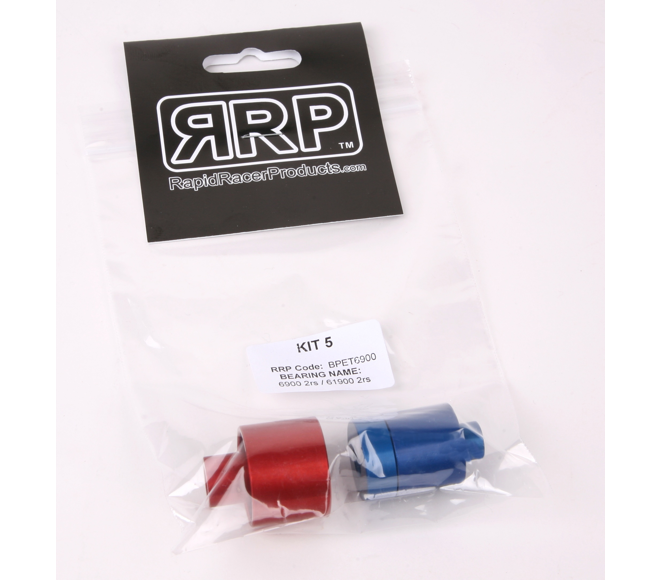

Firstly, ensure you have the correct RRP Bearing Kit to match the bearings you intend to insert / extract (see list below). You can identify which kit you need either by reading the bearing number written on the rubber seal, or you can measure the inner bore race and outer race of the bearing (as shown below) and match it to our list below

(NB: the handle arms have been reduced in length and thickness to decrease the torque available reducing the risk of damage from misalignment / incorrect installation)

Extracting Bearings (RED adaptors) - SOLD SEPARATELY

Place the RED adaptors from your RRP BEARING KIT as shown below, take time to ensure that all the parts fit flush and are aligned to prevent any damage to parts or frame. In particular check that the female adaptor cup is flush on the frame to prevent frame damage.

Wind on the main handle until the parts all come together, make a final check that everything is aligned properly. Continue to wind on the main handle which will allow the male adaptor to pull on the inner race of the bearing and extract it into the female adaptor cup (NB: The male adaptor passes through the female adaptor to ensure a uniform and true extraction*), it will become harder to turn once the bearing starts to extract. After a couple of turns stop and check that the bearing is extracting properly before continuing

Inserting Bearings (BLUE adaptors) - SOLD SEPARATELY

Place the BLUE adaptors from your RRP BEARING KIT as shown below, take time to ensure that all the parts fit flush and are aligned to prevent any damage to parts or frame.

Wind on the main handle until all the parts come together, the male adaptor should be pressing on the outer race of the bearing you are inserting. Make a final check that everything is all aligned. Continue to wind on the main handle, the male adaptor will press onto the outer race of the bearing and insert it (NB: The male adaptor passes through the female adaptor to ensure a uniform and true insertion*), it will become harder to turn once the bearing starts to insert. After a couple of turns stop and check that the bearing is inserting properly before continuing

The most important thing is to match the outer and inner sizes to the chart below. There are dozens of different names of bearings sharing the same dimensions, so matching the exact name is less important.

*Bearing Kits 1, 2 & 3 don’t have male adaptors (all are female adaptors) due to the small size of the bearing bore hole
